PowerMOVE
touch&moveThe PowerMOVE is a passive hoist for moving patients safely and comfortably. The mast allows a translational movement of the lifting arm. The patient is, regardless of the height, always lifted at the same distance from the mast, and can therefore be positioned very precisely. The PowerMOVE requiers little maintenance and the spread of its legs is electrically adjustable, as are the height and tilt adjustments on the arm and spreader bar. The touch&move driving support makes working with the hoist even more effortless, easier and less stressful. This is a smart solution for tackling physical stresses and strains, reducing the risk of physical complaints.
The passive hoist is designed for moving patients in combination with a passive sling. The PowerMOVE has a four-point electric spreader bar with flexible spacers as standard. Suitable for use in combination with slings with clips. The PowerMOVE can also be fitted with a two-point spreader bar for slings with loops. The hoist comes with a stiffener case and is optionally available with an integrated weighing unit.
Features
- touch&move driving support
- New: proper usage indication
- Translational column lift with a fixed spreader bar
- Large unloading range thanks to the long lifting arm and legs
- Low-maintenance column with spindle
- Safe working load: 200 kg
touch&move driving support
The PowerMOVE hoist has touch&move driving support as standard. This is a unique, intuitive electrically powered drive that makes working with a hoist easier and more pleasant. The push handle of a hoist with touch&move driving support has sensors that measure the magnitude and direction of the force exerted on it. A gentle push against the push handle is enough to set the additional wheel under the hoist in motion, either forwards, backwards or sideways. That may sound technical but using it is very intuitive. Read more about touch&move here.
New: the proper usage indication on the control panel enables you to check whether the hoist is being used correctly. And off you go - no problem!
Spreader bar options

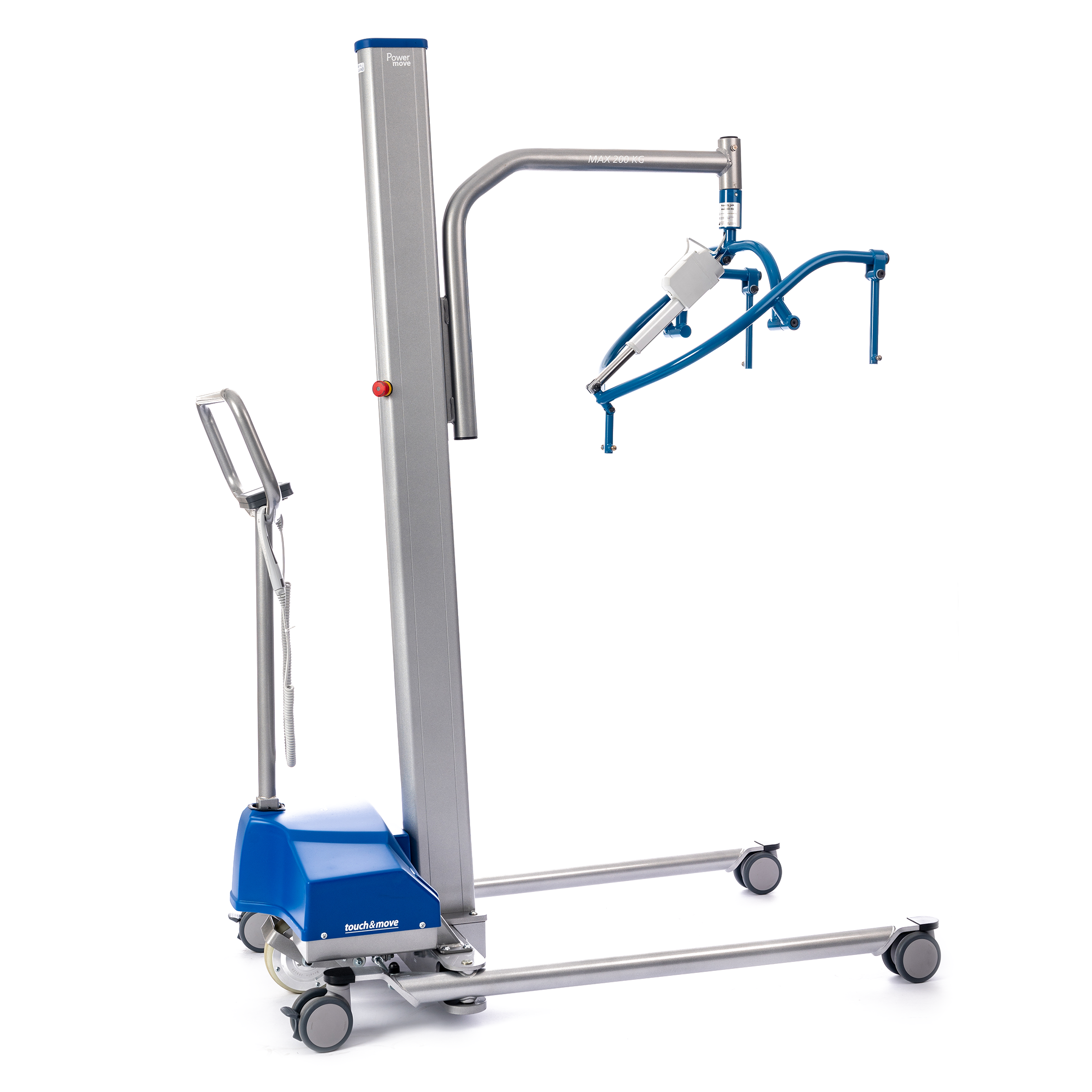

The PowerMOVE has a four-point electric spreader bar as standard. This four-point bar is suitable for slings with clips that can be fixed to the attachment points. Using the hand control or the control panel, the patient’s position can be changed during the transfer.

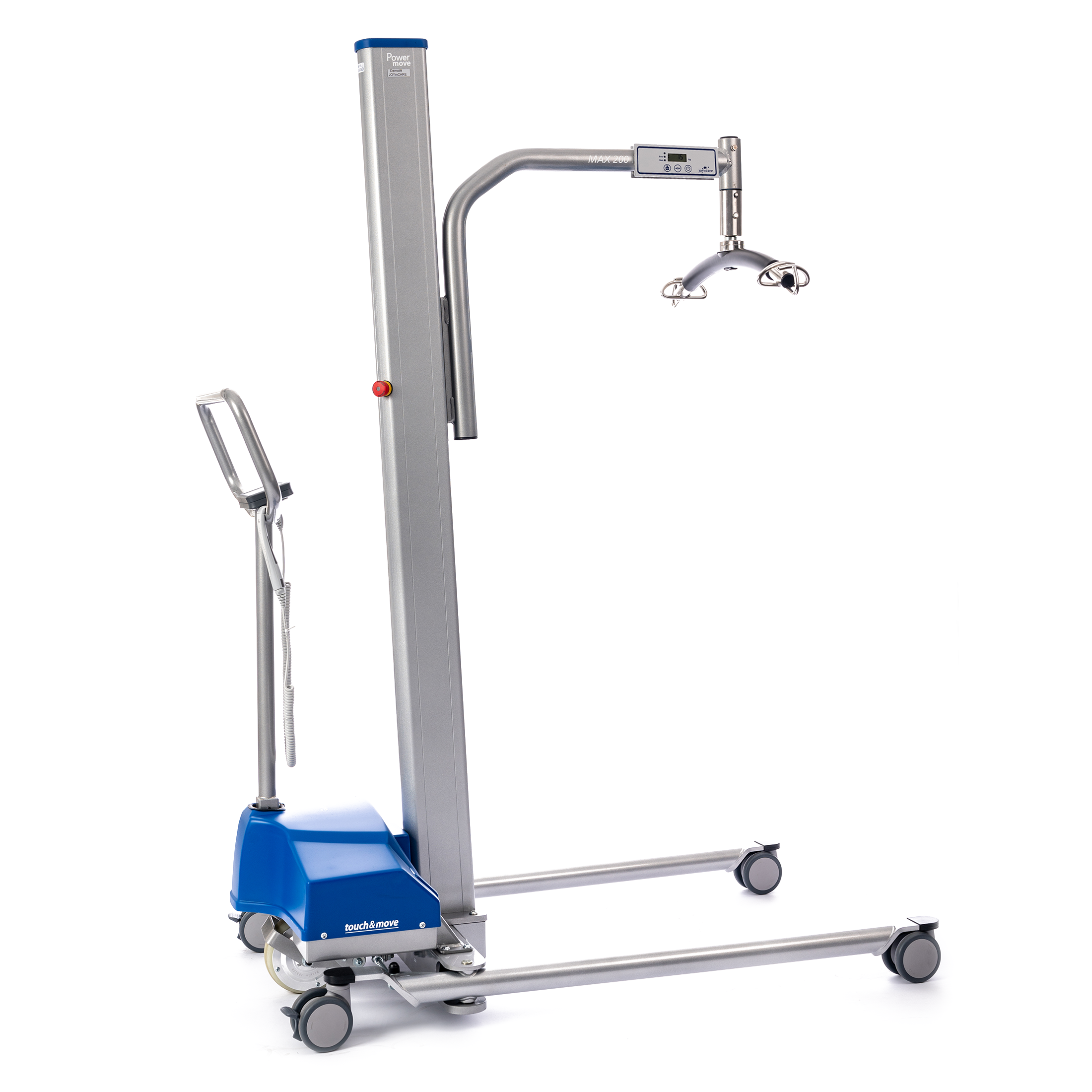

When slings with loops are to be used, the PowerMOVE can be fitted with a two-point spreader bar. This type of spreader bar has two attachment points and no tilt function. The patient’s position can therefore only be changed by varying the length of the loops.
Weighing unit
Regularly weighing passive patients is very difficult in practice. A hoist with weighing unit can help make periodic weighing of a patient simpler. The weighing unit is optional and can be integrated into the lifting arm of the PowerMOVE. This makes it possible to weigh patients easily on a regular basis. The maximum weighing capacity is 200 kg.
PowerMOVE 3.1
|
Part |
Specifications |
|
|
Highest position lifting arm |
207 |
cm |
|
Lowest position lifting arm |
79 |
cm |
|
Height of the legs |
11.5 |
cm |
|
Space under the legs |
6 |
cm |
|
Reach lifting arm at highest position |
57 |
cm |
|
Reach lifting arm at lowest position |
61.5 |
cm |
|
Full length |
140.5 |
cm |
|
Push handle height |
120 |
cm |
|
Minimum total height |
188 |
cm |
|
Maximum total height |
212 |
cm |
|
Maximum width |
120 |
cm |
|
Internal width at maximum spread |
105 |
cm |
|
Minimum width |
70 |
cm |
|
Internal width at minimum spread |
60 |
cm |
|
Maximum turning radius |
155 |
cm |
|
Maximum weight |
200 |
kg |
|
Duration of complete lifting movement |
45 |
sec |
|
Total weight |
106 |
kg |
